Wire diameter: 2.5mm, 2.7mm (11.5 gauge), 3mm
Chain link mesh size: 50x50mm, 57x57mm (2-1/4"), 60x60mm, etc.
Frame tube: O.D 32mm, 33.4mm (1-3/8"), or 42mm (1-5/8") with 0.065" wall thickness
Vertical/Cross tube: O.D 25mm or 32mm with 1.6mm (0.065") wall thickness
Fence base/stand: 610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc
Accessories: Clamp, extra brace (diagonal brace)

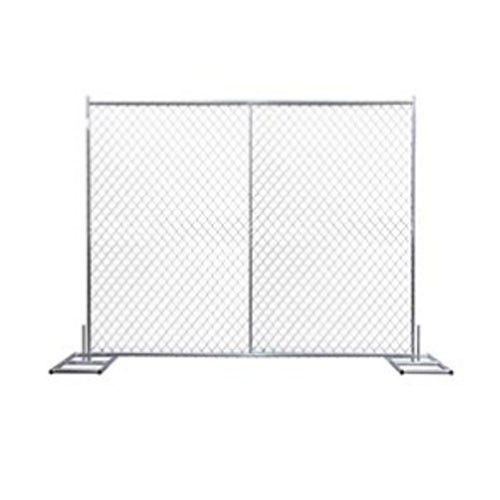

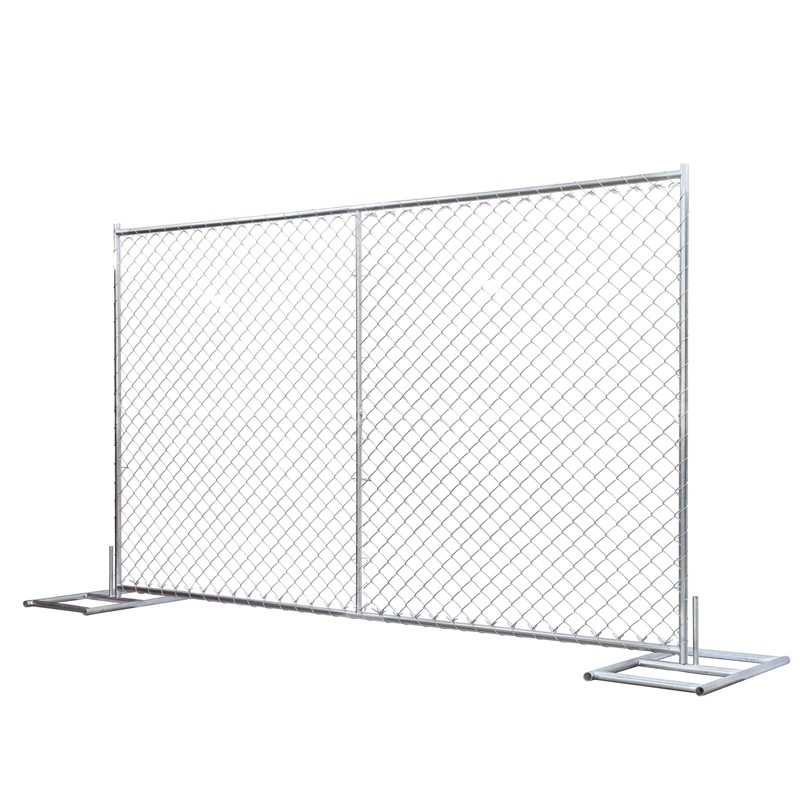

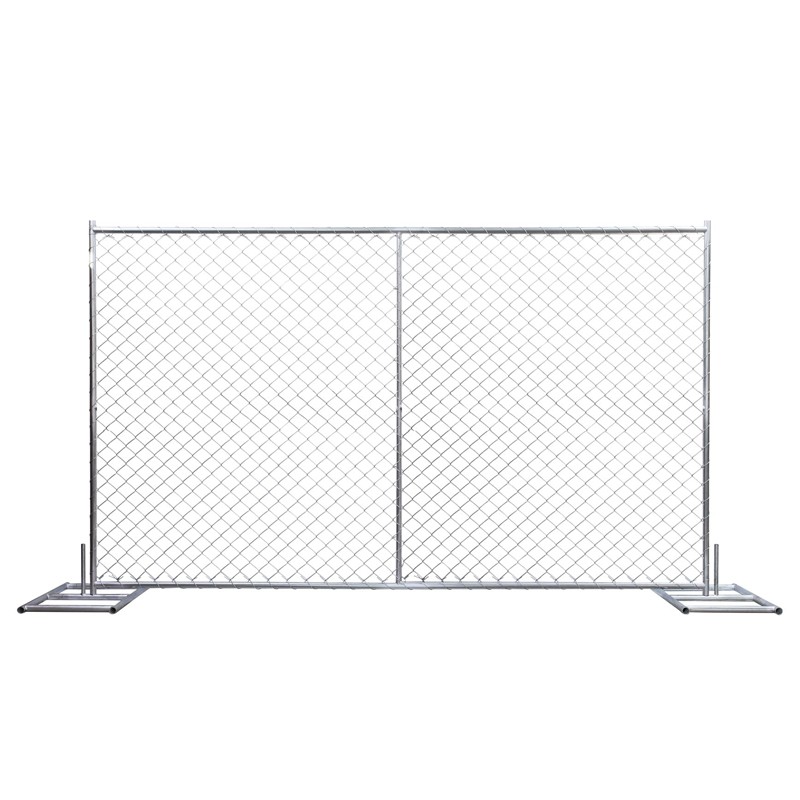

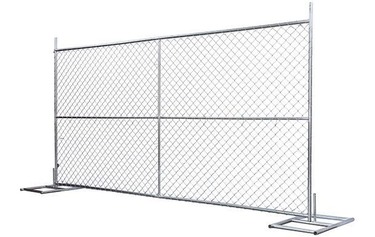

Chain link temporary fence is a kind of temporary fence made from chain link mesh and steel tubes. Its main difference is that its mesh panels is made from chain link meshes. As the chain link mesh is made through woven techniques and need less materials. So it’s more economical than the other welded temporary fencing.
Regarding the surface treatment, it’s hot dipped galvanized and then PVC coated. This makes it good at anti-rust and can enjoy a longer service life.

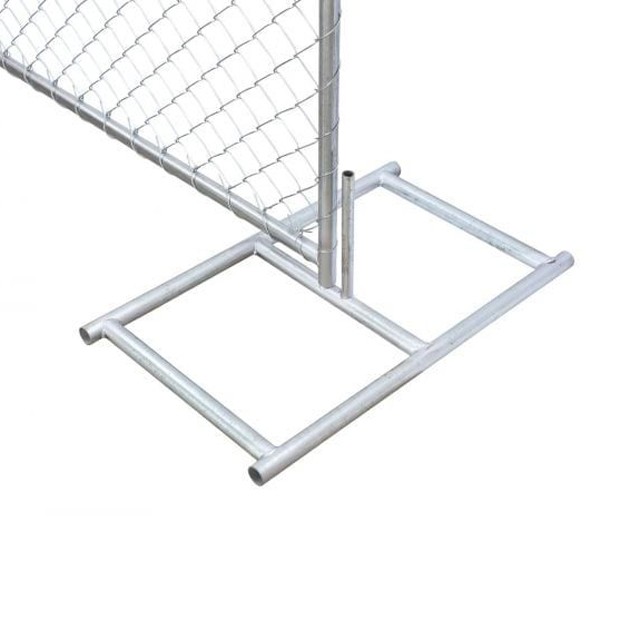

As to its feet, it’s made from steel tubes through welding techniques. Compared with the other connector solutions, it’s more stable and sturdy.
Its main market is in the American and Australia market. And every month, we have several containers to markets there.
![]() | ![]() |
Inline Chain Link Fence Panel | Versa Chain Link Temp Fence Panel |
Features:
Easy and quick installation. Same with the other temporary fencing products, it’s also quite easy to install. Two persons will be enough to handle this work. They just need to connect the different panels with the prepared feet.
Long service life. With quality chain link mesh and high tensile steel wires. the mesh can resit the impact from outside and enjoy a long service life.
Anti-rust. Its surface treatment is hot dipped galvanized. The thick zinc coating makes it good at anti-rust and anti-water.
Specifications for Chain Link Temporary Fence | |
Panel Size: | 6'x9.5', 6'x10', 6'x12', 8'x10', 5'x9.5' or customized size |
Frame tube: | 32mm, 33.4mm (1-3/8"), or 42mm (1-5/8") with 0.065" wall thickness |
Chain link mesh size: | 50x50mm, 57x57mm (2-1/4"), 60x60mm, etc. |
Wire diameter: | 2.5mm, 2.7mm (11.5 gauge), 3mm |
Feet Size: | 610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc |
Surface treatment: | HDG material apply anti-rust paint then spray silver paint |
Material: | Hot dipped galvanized steel |
![]() | ![]() | ![]() |
Temporary fence base | Fence clips | Privacy fence screen |
Application
The chain link temporary fence is used in many areas:
Crowd control
Traffic control in the roads
Simple security protection in factory, warehouse or other areas.
Temporary events.
Sport events
