Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement.

Reinforcing mesh is a highly efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force.

It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof, and walls, etc.

Features of our concrete reinforcing mesh

· The welded wire fabric makes them easier to work on.

· There are different diameters of steel reinforcing mesh each suited for a particular application.

· There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.

The reinforcing mesh panel includes transverse and longitudinal bar, pitch and overhang. The Australian and new zealand's market, the normal panel size is 2.4m*6m.Because of containers size, we always advise our cutomer to make the panel size to be 2.2m*5.8m. It can be easy to be load and save more USD1000 per container for packing and loading cost.

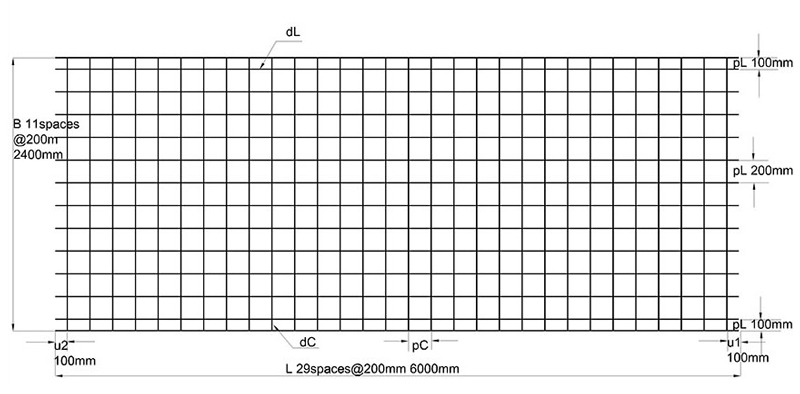

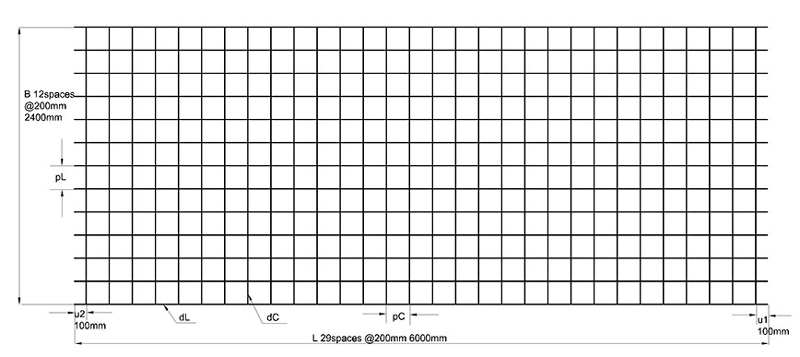

The skatch of reinforcing mesh as below:

NL= Number of longitudinal bars PL= pitch of longitudinal bars dL= diameter of longitudinal bars NC=Number of transverse bars	L= length of longitudinal ba rB=Length of transverse bar u1=Overhang of longitudinal bars u2=Overhang of longitudinal bars
